PTFE Materials

PTFE material has very unique heat and chemical resistance. There are many ways of using PTFE for gaskets.

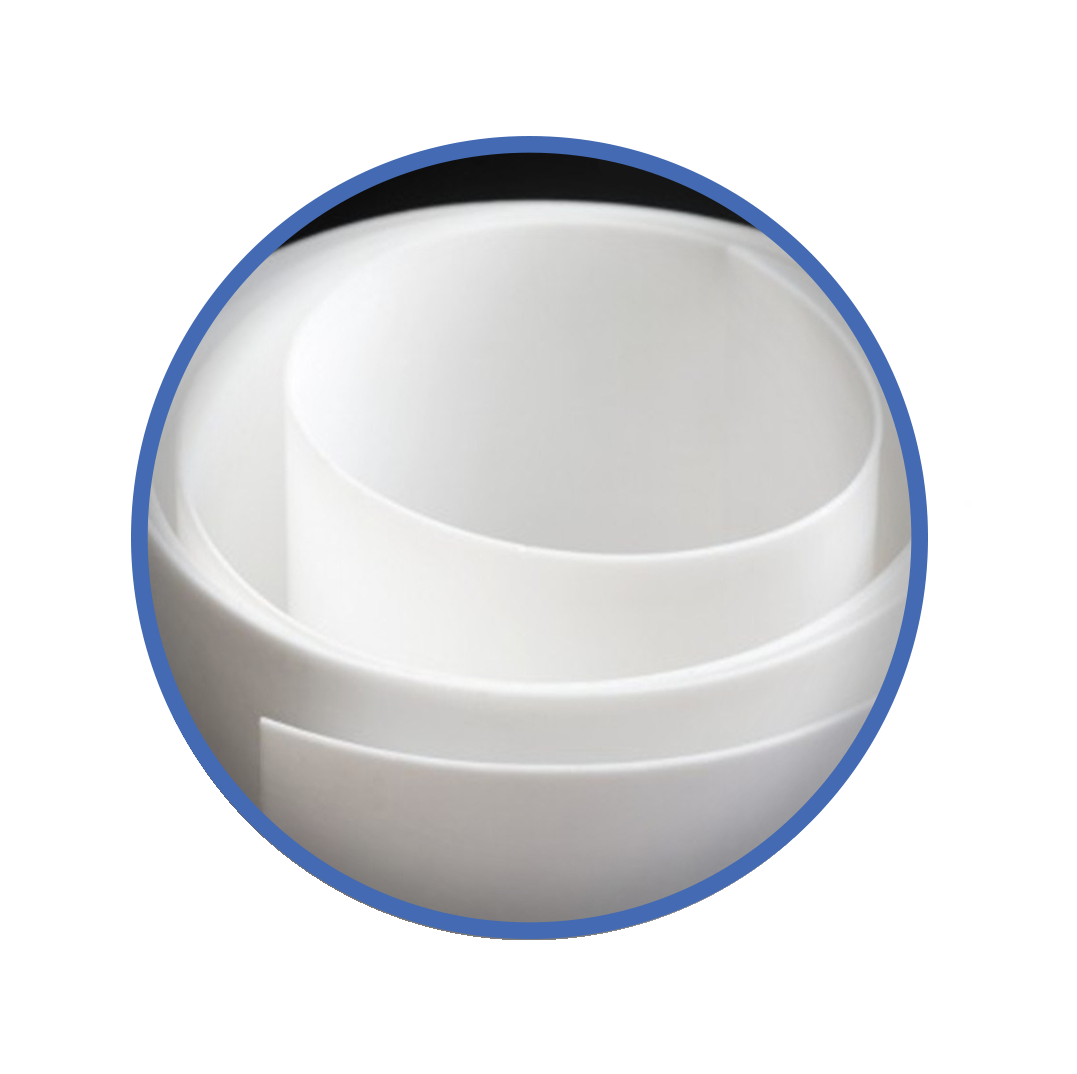

VIRGIN PTFE
VIRGIN PTFE
PTFE is a soft, low friction fluoropolymer with outstanding chemical resistance and weathering resistance.
 - White in colour.
 - Supplied in rolls: 1220mm wide.
 - Thickness: 0.5mm to 10mm (8mm and 10mm only available in sheets).
 - Recommended Maximum Temperature: 220°C.
 - Recommended Services: Bushings, gaskets, food industry, where good chemical resistance is required.

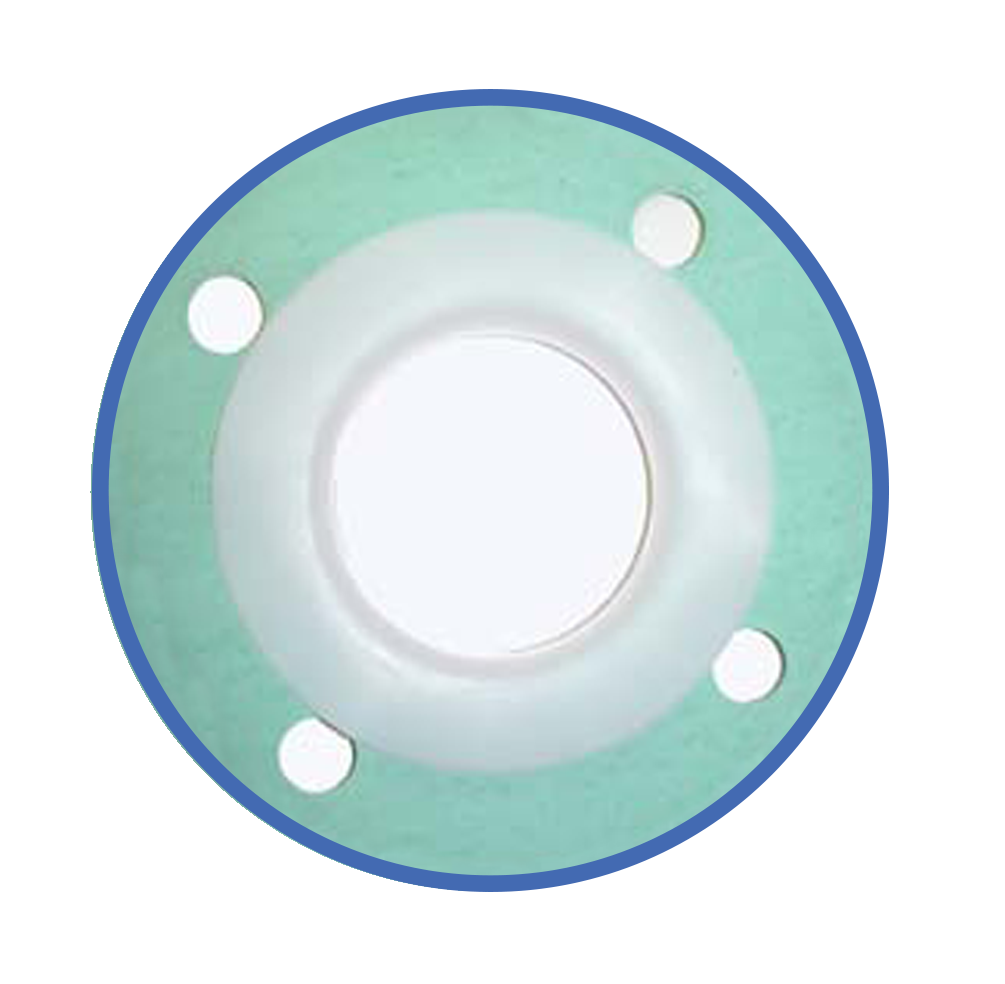

PTFE ENVELOPES
PTFE ENVELOPES
PTFE envelope gaskets consist of a stable gasket insert and a PTFE envelope. Only high-quality, non-porous PTFE is used for the envelope, to protect the insert against chemical attack.
 - White in colour.
 - Supplied in ‘U’ and ‘V’ shape in sizes as requested.
 - Recommended Maximum Temperature: 220°C.
 - Recommended Services: Protection against low-cost material gaskets from aggressive chemicals and to protect the
   medium against contamination from the gasket material.

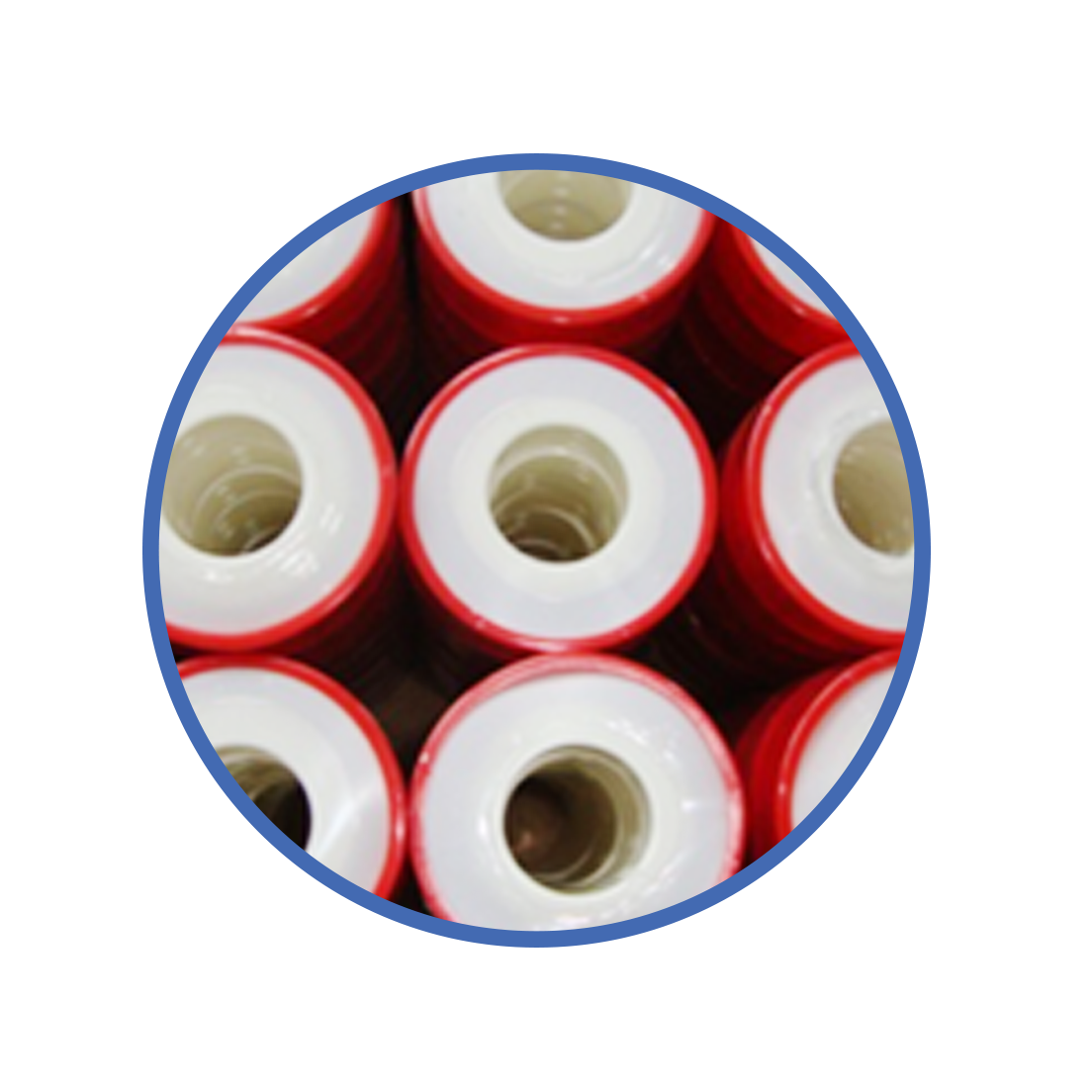

PTFE THREAD SEAL TAPE
PTFE THREAD SEAL TAPE
PTFE thread seal tape is made from virgin PTFE.
 - White in colour.
 - Supplied on plastic dispensing rolls: 12mm, 10mm, and 25mm.
 - Thickness: 0.076mm to 0.1mm.
 - Recommended Services: Pressurised water systems, central heating systems, and air compression equipment.

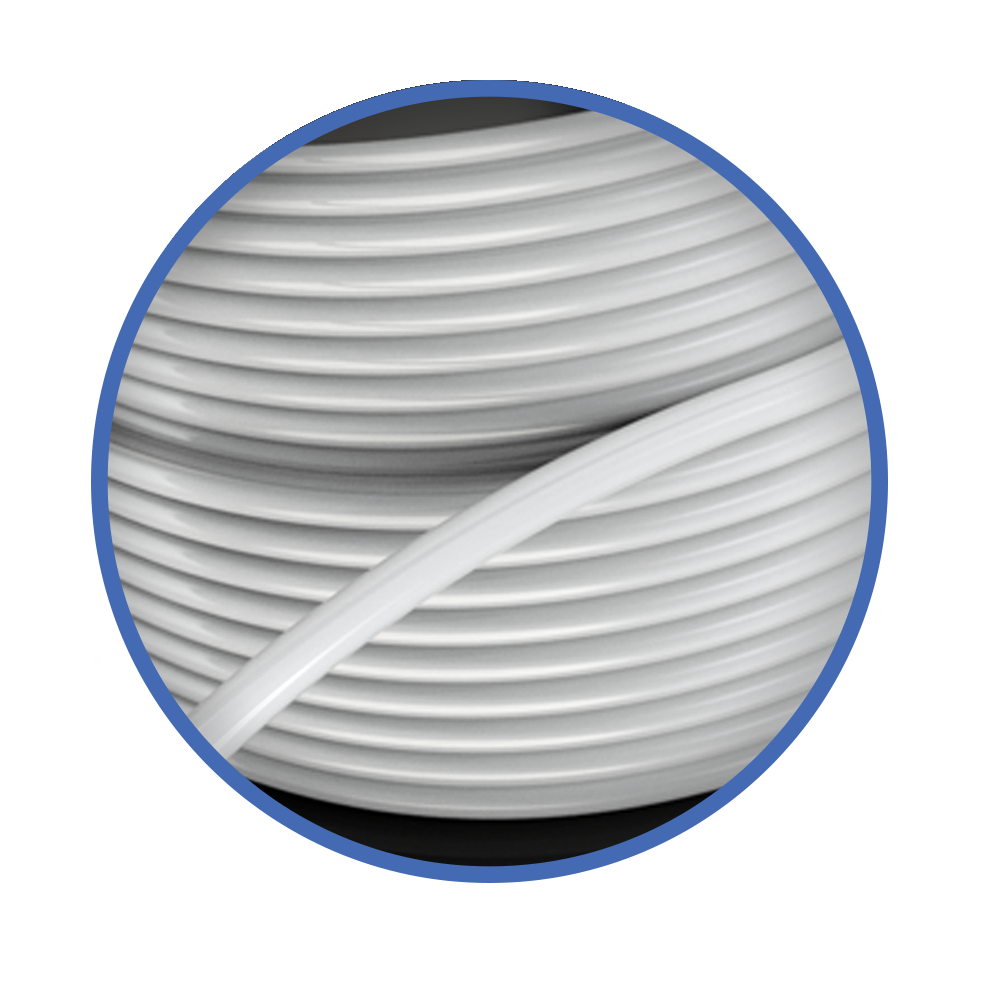

PTFE CORD
PTFE CORD
PTFE cord seal is non-toxic, inert, clean, dry and non-flammable. Manufactured from pure virgin PTFE.
 - White in colour.
 - Supplied in meters rolls.
 - Thickness: 3 - 6mm, 10mm, 12mm, 14mm, 16mm, and 20mm.
 - Recommended Maximum Temperature: 260°C.
 - Recommended Services: Horizontal flanges with low bolt load, un-even surface flanges.

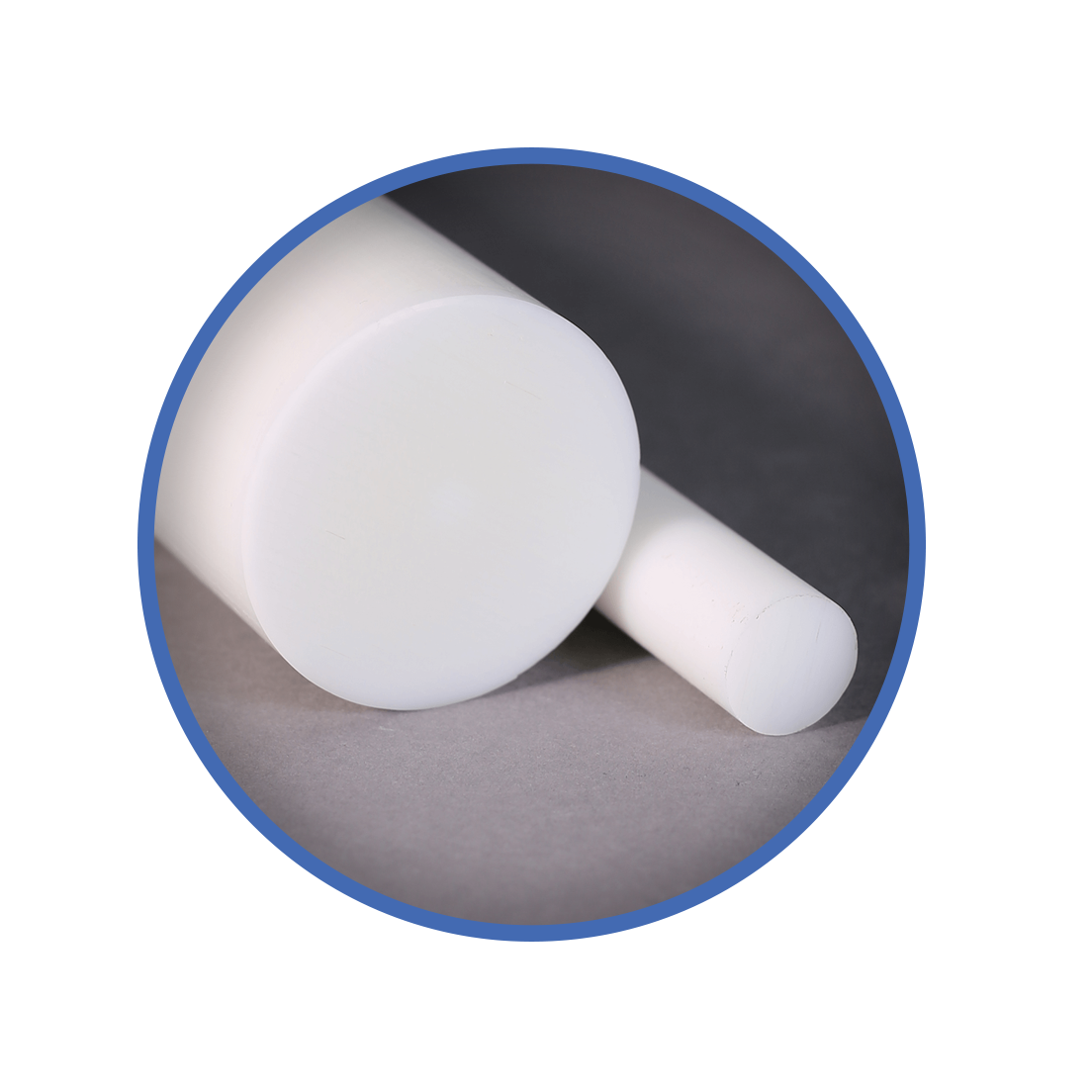

PTFE ROD
PTFE RODS
PTFE is a soft, low friction fluoropolymer with outstanding weathering resistance.
 - White in colour.
 - Supplied in lengths: 2 meters.
 - Rod Diameters:  6mm, 8mm, 10mm, 12mm, 15mm, 20mm & 25mm.
 - Recommended Maximum Temperature: 260°C.
 - Recommended Services: Special machined parts to order.

TASK-LINE (SIRF)
TASK-LINE (SIRF)
Task-line gaskets are pure virgin PTFE resin that is compression moulded around and through a perforated, 304 stainless steel insert.
 - White in colour.
 - Supplied in 150# rings from 15 N/B to 150 N/B.
 - Recommended Maximum Temperature: 240°C.
 - Recommended Services: Excellent for chemical manufacturing, food processing equipment, pharmaceuticals distilling,
   petrochemical, power generation, marine, etc.

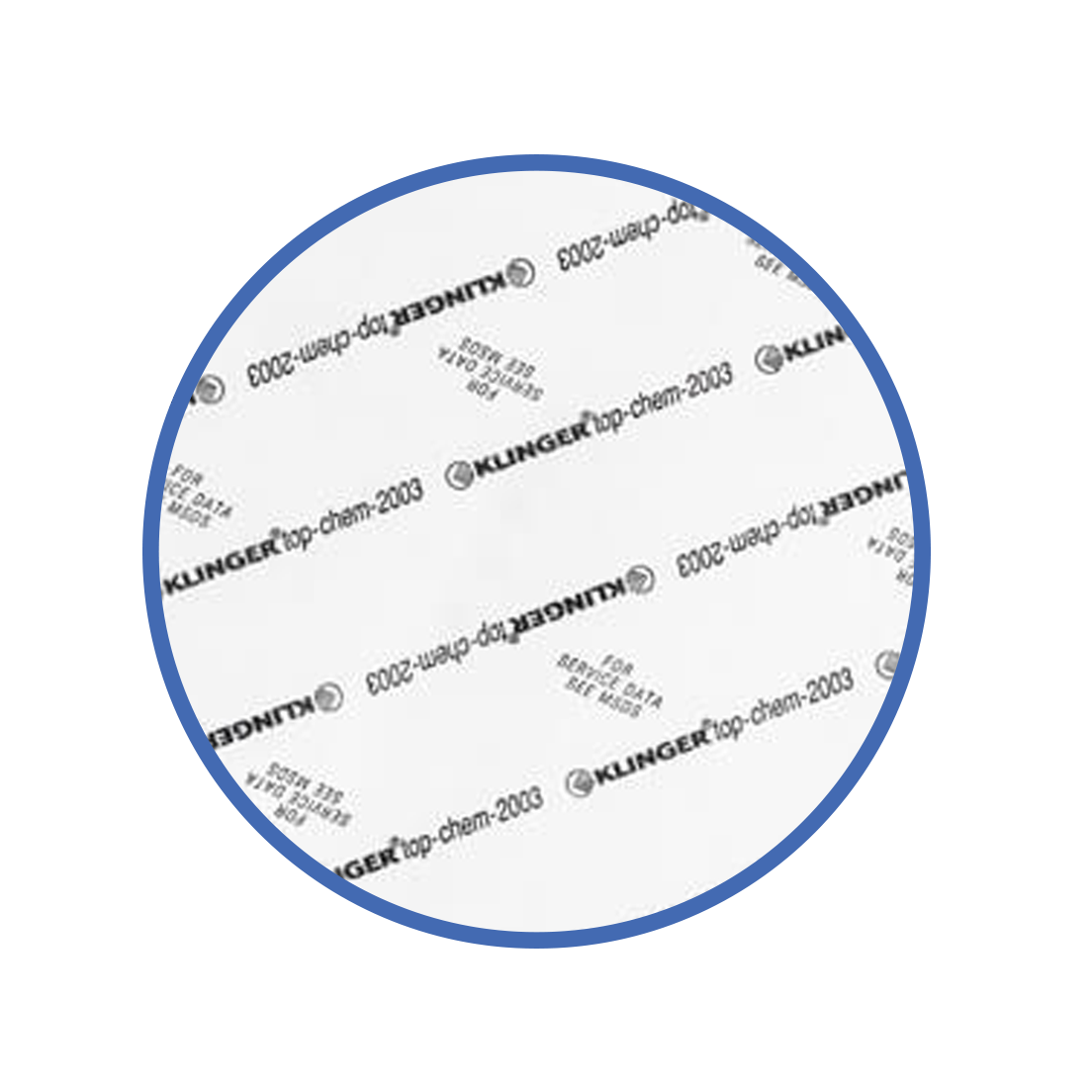

TOP-CHEM 2003
TOP-CHEM 2003
Highly compressible, modified PTFE material with outstanding chemical resistance.
 - White in colour.
 - Supplied in sheets: 1500mm x 1500mm.
 - Thickness: 1.0mm to 3mm.
 - Recommended Maximum Temperature: 240°C.
 - Recommended Services: Resistant to aggressive chemicals, excellent for gas.
 - Suitable for glass-lined and enamel flanges.

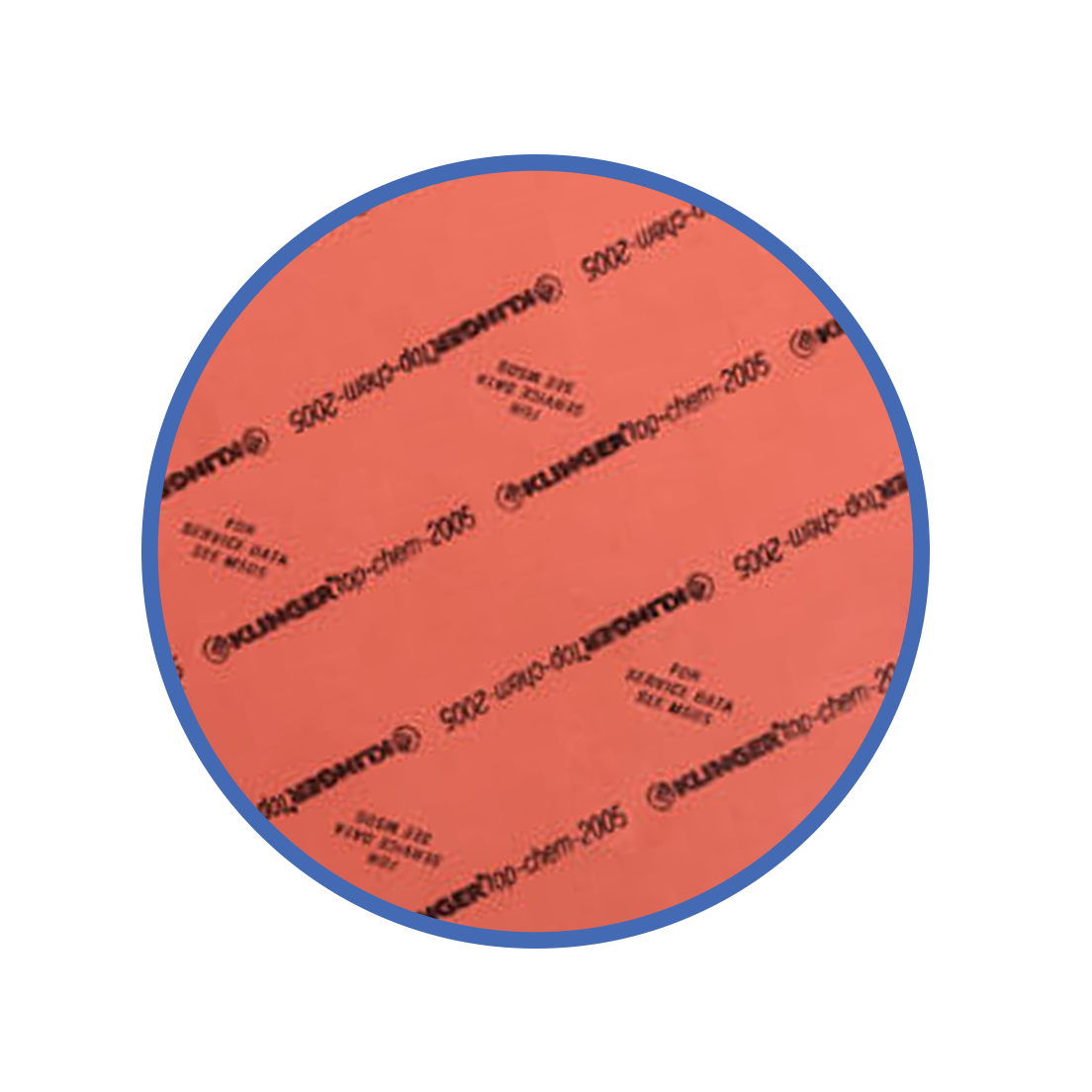

TOP-CHEM 2005
TOP-CHEM 2005
A modified PTFE material with excellent chemical resistance and mechanical properties.
 - Orange in colour.
 - Supplied in sheets: 1500mm x 1500mm.
 - Thickness: 1.0mm to 3mm.
 - Recommended Maximum Temperature: 240°C.
 - Recommended Services: Ideal for strong acidic environments.

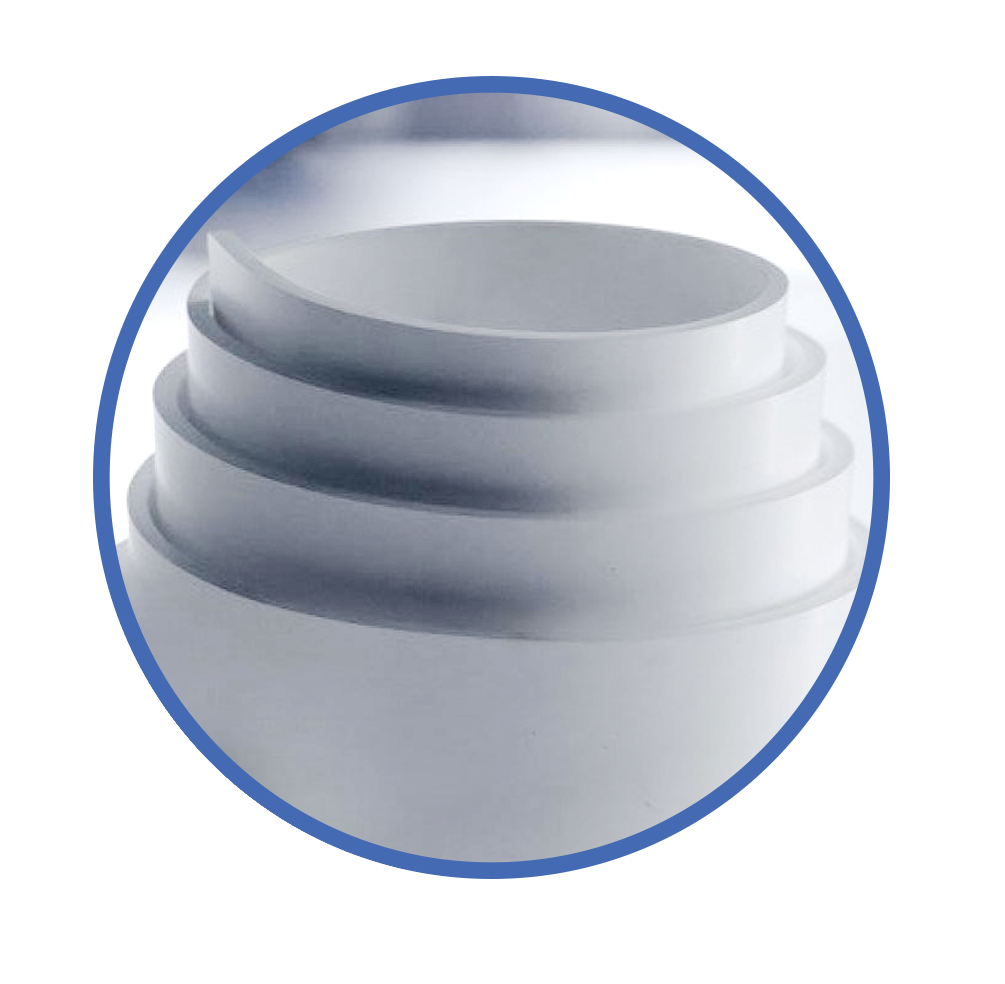

HIGH GRADE LS
HIGH GRADE LS
100% Pure expanded PTFE.
 - White in colour.
 - Supplied in sheets: 1000mm x 1000mm, and 1500mm x 1500mm.
 - Thickness: 1.5mm and 3mm.
 - Recommended Maximum Temperature: 240°C.
 - Recommended Services: Excellent for chemical manufacturing, food equipment, pharmaceuticals, distilling, petrochemical,
   food & beverage, power generation, marine, etc.

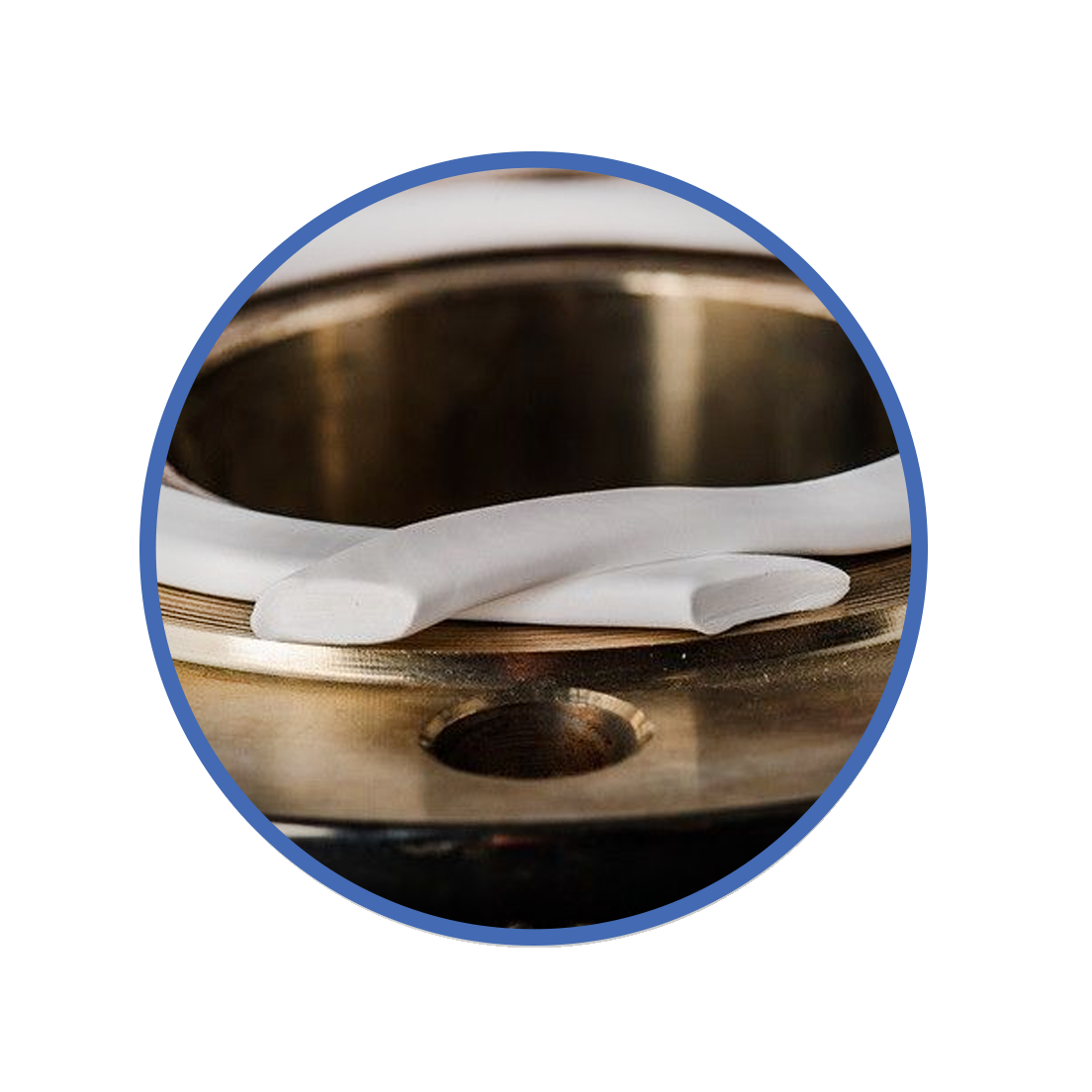

EXPANDED PTFE JOINTING (SEALEX)
EXPANDED PTFE JOINTING (SEALEX)
100% virgin PTFE that has been expanded into a highly compressible product, with an adhesive backing.
 - Maximum Operating temperature: -100°C ~ +280°C.
 - Maximum Recommended Pressure: 210 Bar (3045 PSI).
 - Minimum Bolting Pressure (3mm ~ 25mm): 8 ~ 20MPa.
 - Recommended Services: Irregular flange surfaces, low bolt loads, etc.

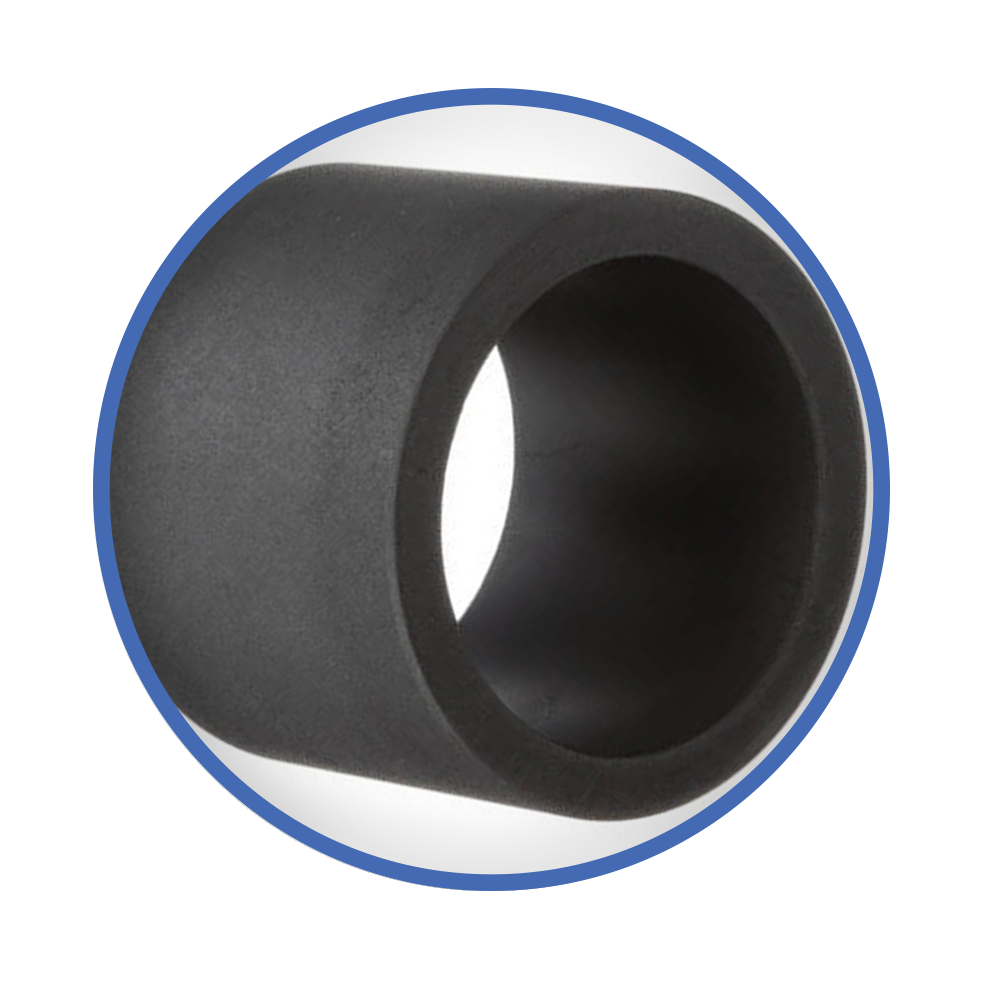

FILLED PTFE

FILLED PTFE
A virgin PTFE that is filled to enhance the compression and wear properties.
 - Supplied to order.
 - Filler materials include carbon, bronze, and glass fibres.
 - Recommended Maximum Temperature: 260°C.
