Thermal Insulation
Thermal insulating materials have great heat resistant properties, making it a unique casketing material.
TWISTED ROPE
Ceramic twisted rope is made by twisting ceramic fibre bulk yarn. It is flexible and resilient, Optional Glass, stainless-steel, or Inconel reinforcing.
- White in colour.
- Supplied in rolls: 50 meters.
- Thickness: 2mm nominal up to 50mm.
- Melting point: 1750°C.
- Recommended Maximum Temperature: 1260°C.
- Recommended Working Temperature: 1800°C. (For e-glass filament reinforcement)
1000°C. (For S/S wire reinforcement)
1200°C. (For Inconel wire reinforcement)
Ceramic twisted rope is made by twisting ceramic fibre bulk yarn. It is flexible and resilient, Optional Glass, stainless-steel, or Inconel reinforcing.
- White in colour.
- Supplied in rolls: 50 meters.
- Thickness: 2mm nominal up to 50mm.
- Melting point: 1750°C.
- Recommended Maximum Temperature: 1260°C.
- Recommended Working Temperature: 1800°C. (For e-glass filament reinforcement)
1000°C. (For S/S wire reinforcement)
1200°C. (For Inconel wire reinforcement)
BRAIDED ROPE
Ceramic fibre braided round, and square ropes are manufactured from superior quality ceramic fibre yarn, braided cover to cover to form a solid packing. The yarn is reinforced with ASTM grade E-glass filament and can withstand very high temperatures.
- White in colour.
- Supplied in rolls: 50 meters.
- Melting point: 1750°C.
- Recommended Maximum Temperature: 1260°C.
- Continuous Working Temperature: 800°C.
WEBBING TAPE
Ceramic webbing tape is manufactured from blown alumino-silicate fibre yarn which has been blended from high purity alumina and silica. Available with glass and wire reinforcing.
- White in colour.
- Supplied in rolls: 30 meters.
- Roll Width: 25mm, 40mm, 50mm, 75mm, and 100mm.
- Thickness: 2 mm nominal.
- Recommended Maximum Temperature: 600°C.
- Melting Point: 1700°C.
Ceramic webbing tape is manufactured from blown alumino-silicate fibre yarn which has been blended from high purity alumina and silica. Available with glass and wire reinforcing.
- White in colour.
- Supplied in rolls: 30 meters.
- Roll Width: 25mm, 40mm, 50mm, 75mm, and 100mm.
- Thickness: 2 mm nominal.
- Recommended Maximum Temperature: 600°C.
- Melting Point: 1700°C.
PLAIN / COATED THERMAL SLEEVING
The product is suitable for thermal insulation and protection of hoses, cables, and pipes.
- White in colour (Plain), Red in colour (Silicone coated).
- Supplied in rolls: 15 meters long.
- Standard Size: 12mm to 100mm.
- Wall Thickness: 1mm. Add 2mm for coated.
- Recommended Maximum Temperature: 450°C (Plain), 260°C (Coated).
- Melting Point: 1700°C.

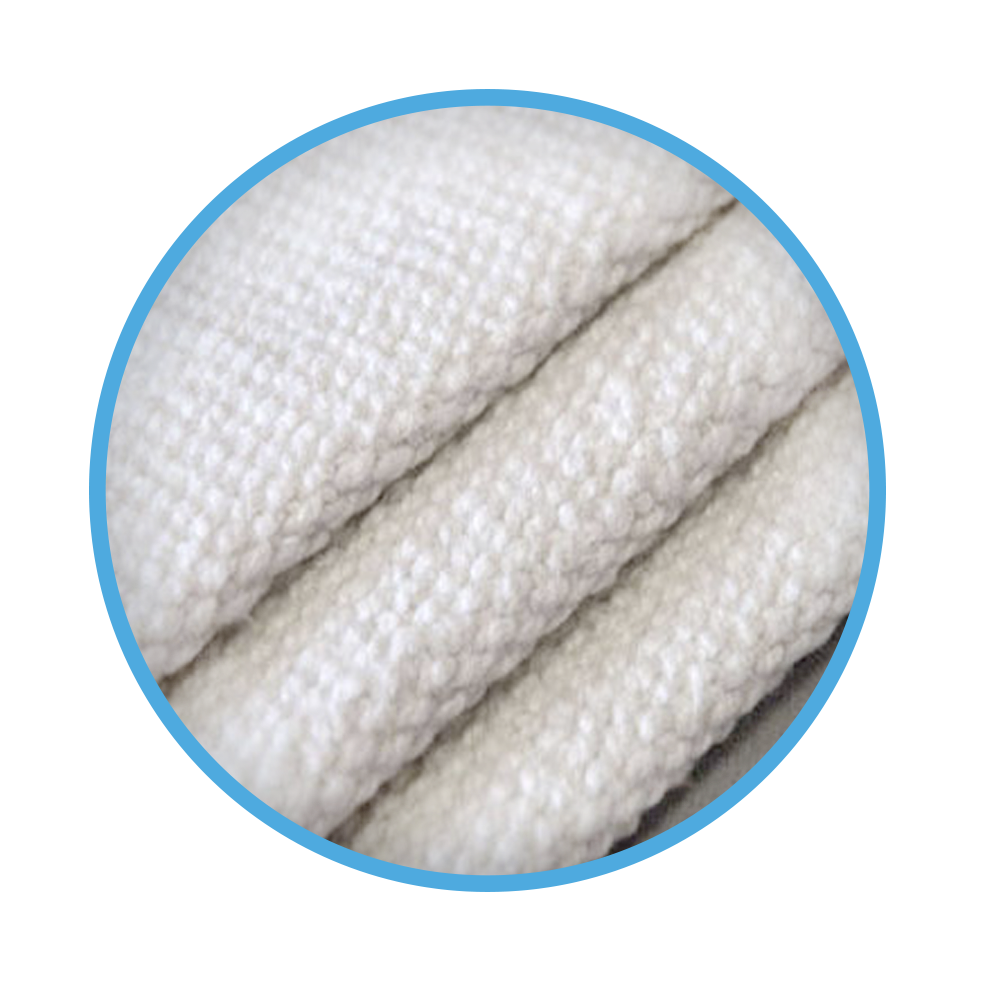

CERAMIC CLOTH
A mixture of aramid and ceramic fibres, woven into cloth with glass reinforcing.- White in colour.
- Supplied in rolls: 50 meters long.
- Standard width: 1500mm.
- Thickness: 2mm.
- Recommended Maximum Temperature: 350°C.
GLASS CLOTH
A mixture of aramid, carbon and glass fibres which are combined to provide high strength, protection, and operating temperature.- White in colour.
- Supplied in rolls: 50 meters long.
- Standard Width: 1000mm.
- Thickness: 0.7mm.
- Recommended Maximum Temperature: 430°C.

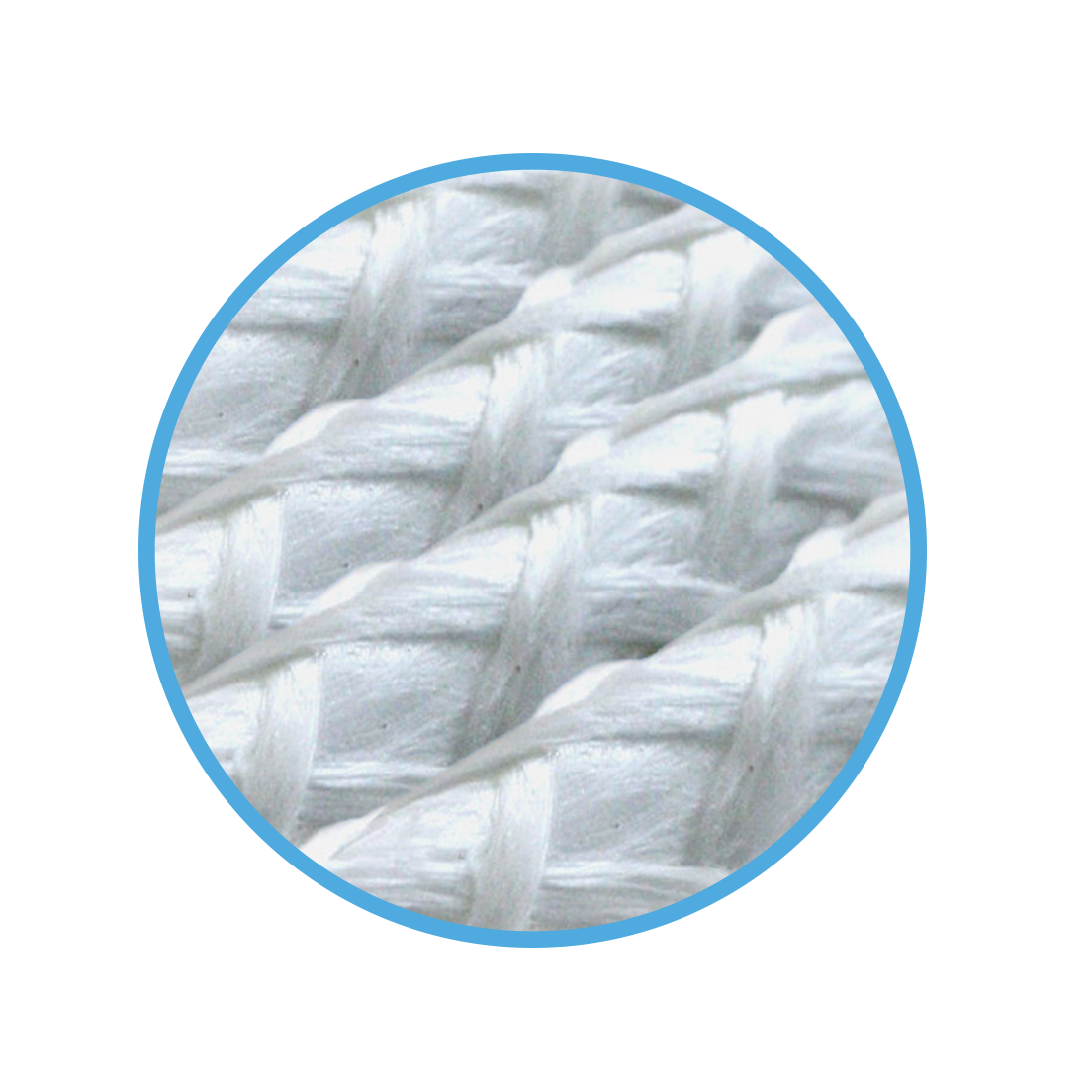

ROPE LAGGING
Rope lagging consists of low-density glass fibres supported by ceramic fibres and enclosed in a braided glass yarn.- White in colour.
- Supplied in rolls: 30 meters long.
- Diameter: 13mm, 20mm, 25mm, 40mm, and 50mm.
- Recommended Maximum Temperature: 600°C.
- Recommended Services: Insulating pipework, high-temperature sealing, caulking, etc.
CERAMIC PAPER
Ceramic paper is an alumino-silicate ceramic fibre-based non-woven fabric. It is manufactured through a special paper-making process with high purity washed fibres, suitable for high-temperature insulation.- White in colour.
- Supplied in rolls: 600mm wide, and 1200mm wide.
- Thickness: 0.8mm, 1.5mm, 3mm, and 6mm.
- Recommended Maximum Temperature: 1260°C.
- Recommended Services: Insulation, pipe wrapping, aerospace, fire protection, electrical insulation, seals, gasket, etc.
PRE-FORMED PIPE SECTIONS
Performed sections of glass fibres bonded with a heat resistant resin, free from shot and coarse fibre, light, damage-resistant, easy to handle, cut and fit. The sections are split along their lengths to provide a hinge for ease of fitting.- Can be supplied with a glass-reinforced aluminium foil.
- Length: 1000mm.
- Recommended Maximum Temperature: 230°C.
CERAMIC BLANKET
Ceramic fibre blankets are a type of insulation material constructed as one continuous blanket. This blanket is composed of pure materials melted at high temperature to ensure its insulation capacities.- White in colour.
- Supplied in rolls: 610mm x 7300mm.
- Thickness: 25mm.
- Recommended Maximum Temperature: 1260°C.
BULK FIBRES
Ceramic fibres are manufactured from alumina-silicate materials and are chemically inert.- White in colour.
- Supplied in bags: 20 Kg.
- Thickness: 3 - 5 microns.
- Recommended Maximum Temperature: 1000°C.
CERAMIC FIBRE BOARDS
Ceramic fibre boards are manufactured from alumino-silica and binders. Ceramic fibre boards are chemically inert.- White in colour.
- Supplied in sheets: 1200mm x 1200mm.
- Thickness: 25mm and 50mm.
- Recommended Maximum Temperature: 1260°C.
CERAMIC FELT
Ceramic felt is a vacuum formed felt manufactured from high temperature insulation wool bound with an organic binder.- Yellow / white in colour.
- Supplied in rolls: 1000mm wide.
- Thickness: 2mm, and 3mm.
- Recommended Maximum Temperature: 1300°C.
MILLBOARD
Millboard is a non-asbestos insulating gasket material.
- Off-White/Grey in colour.
- Thickness: 1mm to 12mm.
- Recommended Maximum Temperature: MB 700 800°C.
MB 900 1000°C.
MB 2000 1200°C.
Millboard is a non-asbestos insulating gasket material.
- Off-White/Grey in colour.
- Thickness: 1mm to 12mm.
- Recommended Maximum Temperature: MB 700 800°C.
MB 900 1000°C.
MB 2000 1200°C.
